铜芯聚氯乙烯绝缘 copper PVC insulated
电气安装用线缆 EKF40000/40100 CCC UL CE

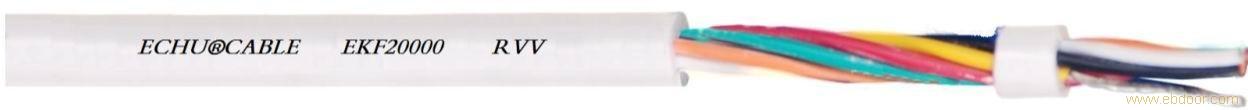

Electronic installation cable EKF40000/40100
1.1 The PVC insulated sheathed control cable is worked as control,monitor or protect cable under AC rated voltage 450/750V or less than it.
2. Character
2.1 Rated voltage U。/U is 450/750V
2.2 Long term working promited temperature is 70°C
2.3 Cable laying temperature could not lower than 0°C
Suggested bending radius
Without sheathed cable should not less than external diameter X6
Sheathed cable or cooper shield cable should not less than external diameterX12
Shield soft cable should not less than external diameter X6
Sheath: PVC sheath black(RAL9005)or Gray(RAL7001)
制造标准：Manufacture standard
GB9330标准 GB9330 Standard
电缆结构：Construction
导 体：无氧裸铜丝。
Conductor: Oxygen free bared copper
绝 缘：聚氯乙烯绝缘
Insulation: PVC insulate
颜 色：黑色数字白色号码编号,3芯以上带有黄绿接地线（可选）
Cores black with consecutive white numbering. 3 cores or more with green/yellow earth
内衬层：无方布包裹缓冲.
Inner lay: Non-woven for buffer
护 套：聚氯乙烯护套,黑色(RAL9005)或灰色(RAL7001)
